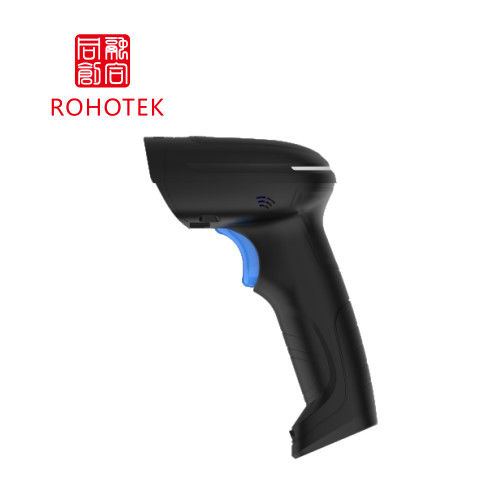

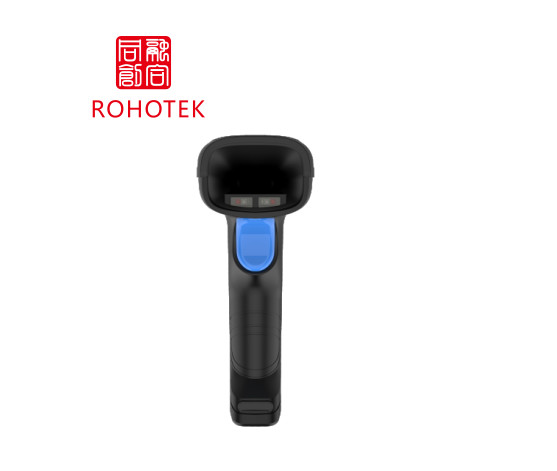

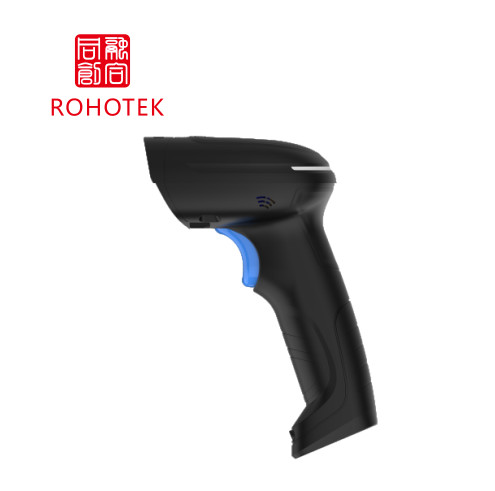

USB Laser Barcode Portable Scanner Industrial DPM Scanner 67mm*87mmx183mm

Minimum Order Quantity :	1PCS	Price :	100USD
Supply Ability :	3000PCS/mouth

Place of Origin:	CHINA	Brand Name:	Mobydata
Model Number:	KS200

Detail Information
Barcode Dimension:	1D/2D	Barcode Type:	Contact Card Device
Core Components:	Mountain Monorail Transport	Decode Capability:	EAN/JAN, Code 93, Code 39, UCC/EAN-128, IATA, Code 32, Codabar, Code 11, Code 128, UPC, Interleaved 2 Of 5, MSI-Plessey, Code 39 Full ASCII, Code 39 Trioptic
Dimensions:	67mm*87mmx183mm	Image Resolution:	≥ 5mil
Keyword:	Usb Laser Barcode Portable Scanner	Machinery Test Report:	Not Available
Marketing Type:	Ordinary Product	Series:	Monorail
Showroom Location:	None	Speed:	2100 Time /S
Stand:	Optional	Standby Power:	Standby Power
Warranty:	3-5 Years
Highlight:	USB Laser Barcode Portable Scanner , Industrial DPM Barcode Scanner

Product Description

Structure Parameter
Overall dimensions (L X W X H) 67mmx87mmx183mm
Weight "177g
Electrical Parameters
ESD ± 15 KV air, ± 8 KV contact
Input Voltage " 5V
Input and output interfaces USB, RS232; key trigger, infrared trigger
Environmental parameters
Drop Can withstand 18 times 2 meters steel plate drop, 40,000 times 5 cm light drop
Roller 2000 times 0.5 meter steel plate flip
Temperature "Operating temperature: -20 to 50 °C
	Storage temperature: -40 to 70 °C
Humidity "0 to 95% relative humidity, non-condensing
Ambient light "Ambient light: -40 to 70 °C
Dust and waterproof rating
IP65
Performance Parameters
Sensor resolution
1280x800
Illumination Red and white illumination
Aiming " "laser
Field of view "42°H x 26.8°V
Barcode Contrast Ratio
Minimum 15% print contrast
Scanning Angle "Tilt Angle Pitch: +/- 60°; Roll Angle Roll: +/-180°; Deflection Angle Yaw: +/- 60°
Barcode Resolution
Minimum 3 mil
Read Indicator Buzzer; LED Indicator; Vibration Indicator
Decoding Capability
2D Code Aztec Code; China Han Xin Code; Data Matrix; MaxiCode
	Micro QR Code; QR Code; Digimarc; Dot Code; OCR
1D Code "All standard 1D codes including GS1 DataBar™.
Postal Codes Australian Post; British Post; China Post; IMB; Japanese Post
	KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code
Stacked Codes EAN/JAN Composites; GS1 DataBar Composites
	GS1 DataBar Expanded Stacked; GS1 DataBar Stacked
	GS1 DataBar Stacked Omnidirectional; MacroPDF
	MicroPDF417; PDF417; UPC A/E Composites
Reading Range
3 mil Code 39
13 mil UPC
10 mil DM
20 mil QR" "10 mm - 90 mm
10 mm - 200 mm
0 mm - 100 mm
60 mm - 250 mm"
